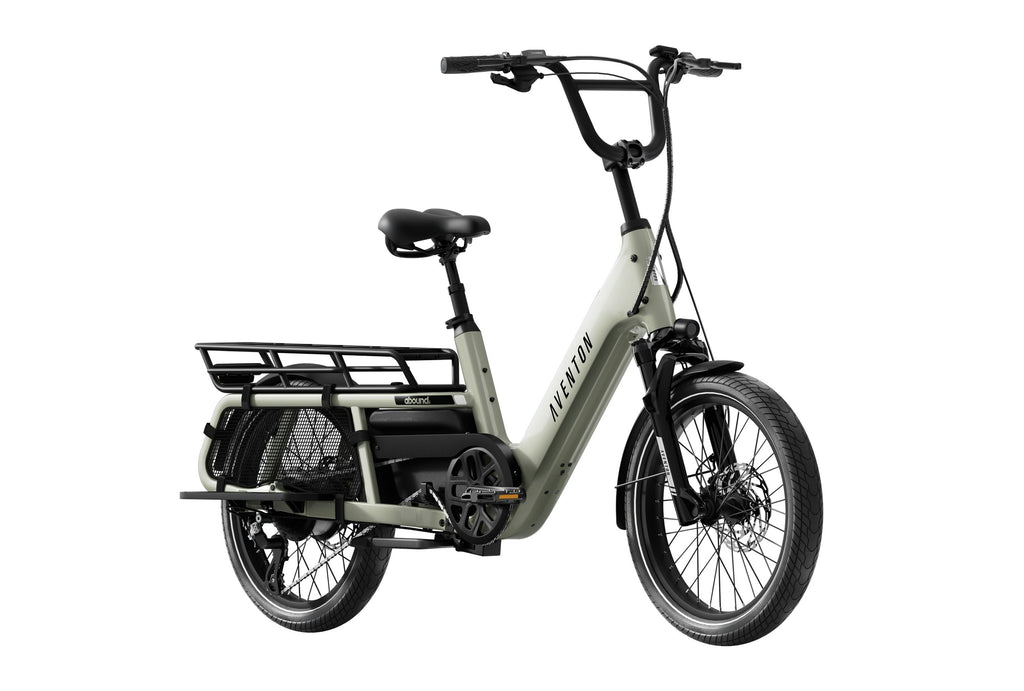

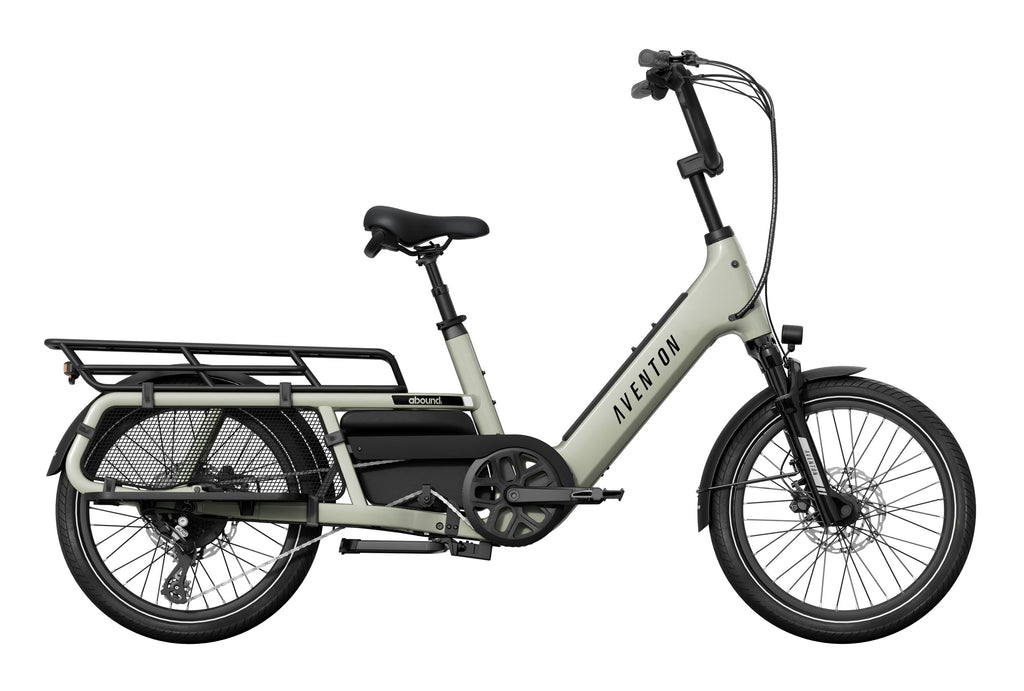

Aventon Abound LR Ebike
Sage
Sale price
£1,199.99
Regular price £1,999.99
Skip to product information
Aventon Abound LR Ebike
Sale price
£1,199.99
Regular price £1,999.99
Description
Abound LR Ebike
Carry More, Ride More
Increased Security
Theft Deterrence†
TECHNICAL SPECIFICATIONS
General Info
Model
Abound LR Ebike
Weight
88lbs
Total Weight Limit
440 lbs
Rider Height
4'11" - 6'3"
Class
Class 2 Ebike
Water Resistance
IPX4
Range
Up to 60 miles
Frameset
Frame
Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
Rear Spacing
175mm
Fork Spacing
110mm
Wheelset
Front Wheel
Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
Rear Wheel
Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
Tires
20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls
Ebike System
Motor
Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
Motor Torque
80Nm
Display
Aventon BC147
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells
Battery Weight
8.7lbs
Controller
36V/33A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
36V Output: 42V/ 4A
Charging time from 0% to 100%
5 hours
Lights
Front and Rear Lights Integrated w/ Turn Signals
Brakes
Front Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Rear Brake
Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
Front Brake Rotor
180mm 6 bolt
Rear Brake Rotor
203mm 6-bolt
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Shifter
Shimano 8 Speed Trigger SL-M315-8R
Chain
7/8 speed 154L
Cassette
12-32T / 8 Speed Shimano CS HG200-8
Chainring
52 tooth
Chainring BCD
104
Crank
3pc, 165mm crank arm
Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor
Pedals
9/16" Composite Platform
Cockpit
Saddle
Aventon Saddle w/ grab handle by Selle Royal
Seatpost
Aventon Suspension Seatpost, 30.9Ø, 350mm Length. 50mm travel
Seatpost Clamp
34.9mm
Handlebars
BMX Style Aluminum 31.8mm, 720mm
Grips
Aventon Ergonomic Comfort lock on grips
Headset
H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
Included Accessories
Fenders
Included
Rear Rack
Included
Rear Rack Weight Limit
143 lbs
Technical Overview
The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.
The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.
